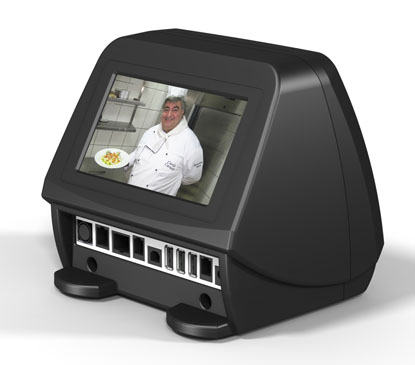

Fiscal Computer system I POS.XM (PT3305F)
- OS Android or Linux,
- communication the POS-periphery,
- built-in thermal printer 3" Seiko
- connection of fiscal and non-fiscal printers,
- various application software
The delivery set includes application software - PORTAL ULTRA front-office
| Specifications | |
| Terminal | Yes |
| Chipset | Olimex A13/1Ghz/521Mb |
| Оperating system | Linux/Android |
| Built-in customer display. | 5"; TFT, 3х20 |
| Cashier display | Option VGA |
| External customer display | Option |
| Interfaces | 4хUSB-A + 1 internal, Ethernet, 2xRS232, VGA |
| Cash drawer interface | 24V/1A |
| Fiscal version | Yes |
| Data transfer modem | Yes |
| Max. printing speed, mm/sec | 200 |
| Cutter | Auto |
| Cutter Reliability | 1 000 000 |
| Printing method | Thermal |
| Print resolution, dots/mm | 8 |
| Print resolution dots per line | 576 |
| Printing mechanism | Seiko CADP347E-E |
| Thermal printing head reliability, km | 100 |
| Paper for printing | Thermal 0,054 - 0,091 mm |
| Paper width | 80-1 |
| Paper roll max diameter, mm | 60 |
| Paper loading method | Easy loading |
| Effective printing width, мм | 72 |
| ESC/POS support | Yes |
| Energy source | 24V/2,5A |
| Cash drawer control | Yes, 12V, 24V |
| Color | Black |
| Width, mm | 195 |
| Length, mm | 150 |
| Height, mm | 140 |
| Quantity of departments | 15 |
| Quantity of cashiers | 16 |
| Nubber of symbols for product name | 46 |
| Starting message, lines | 3+1+1 |
| Final message, lines | 1 |
| TAX groups positive | 4 |
| TAX groups negative | 4 |
| Operation conditions: - T, °С | +5...+45 |
| - humidity, %, at +30 °С | 10 to 80 (non-condensing) |
| Storage conditions: - T, °С | - 10...+50 |
| - humidity, %, при +30 °С | 10 to 90 (non-condensing) |
| Leaflet | Загрузить |
Fiscal computer system IPOS.XM (PT3305F) is a Linux (Android) terminal and a fiscal printer 2 in 1
- OS Android or Linux,
- communication the POS-periphery,
- built-in thermal printer 3" Seiko
- connection of fiscal and non-fiscal printers,
- various application software
The delivery set includes application software - PORTAL ULTRA front-office
The Fiscal computer system I Pos.XM is intended for use in retail, services and public catering. It provides the sales registration of the goods (services) with the issuance of the check, the automation of accounting and stocktaking of goods.
It saves the data to monitor tax payments, provides daily and periodic fiscal reports.
The Fiscal computer system complies with Law of Ukraine «On the application of payment transactions registers in trade, catering and services," requirements for the implementation of fiscal functions for various applications, approved by Cabinet of Ministers of Ukraine N 199 of 18.02.2002.
The Fiscal computer system meets «Requirements for creating control tape in electronic form in registers and modems for data transmission" and "Transmission Procedure for electronic copies of fiscal reporting checks by wired or wireless communication channels to the State Tax Service" approved by order of the Ministry of Finance of Ukraine №1057 from 08.10.2012
Areas of use:
- Minimarkets, retail and wholesale trade
- Shops, boutiques, pharmacies;
- Hotels, motels, guest houses, holiday homes, fitness centers;
- Restaurants, cafes, fast food outlets, bars;
- Other areas of the automation of small business, which is necessary to implement economic solutions.
