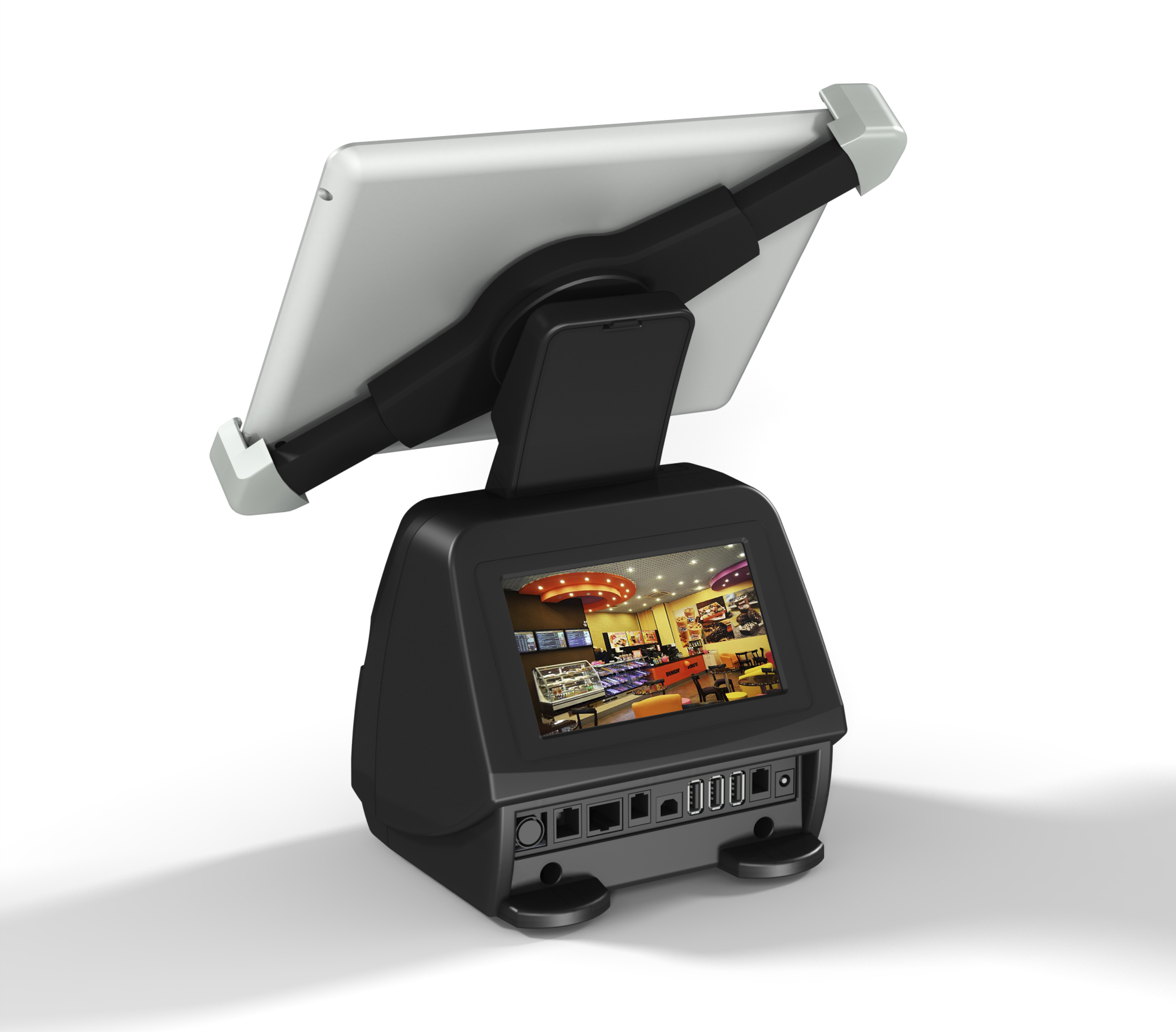

Docking Station iPOS PT3305
It is thanks to Docking Station, the application software, which is installed on the tablet, may communicate with external peripherals.

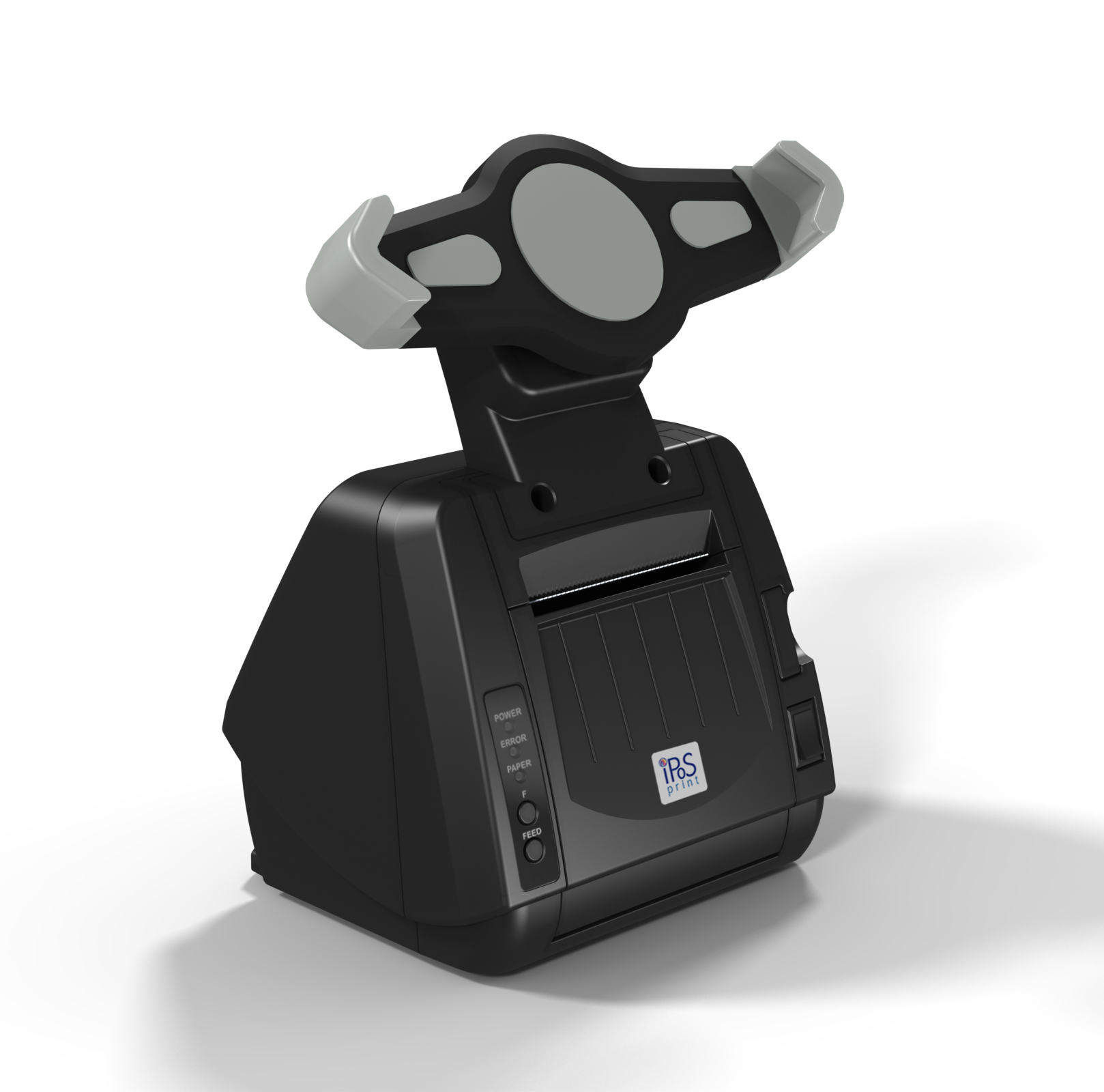

iPOS PT3305 has a built-in thermal printer 3" Seiko and customer display"
| Specifications | |
| NEW ! | Yes |
| Docking Station | Yes |
| Tablet holder | 7"-10" |
| Built-in customer display | 5" |
| External customer display | Option |
| Interfaces | 4хUSB, 2xRS232, Ethernet |
| Cash drawer interface | Yes |
| Fiscal version | Yes |
| Tablet communication | USB, Bluetooth by USB Adaptor |
| Max. printing speed, mm/sec | 200 |
| Cutter | Auto |
| Cutter Reliability | 1 000 000 |
| Printing method | Thermal |
| Print resolution, dots/mm | 8 |
| Print resolution dots per line | 576 |
| Printing mechanism | Seiko CADP347E-E |
| Thermal printing head reliability, km | 100 |
| Paper for printing | Thermal 0,054 - 0,091 mm |
| Paper width | 80-1 |
| Paper roll max diameter, mm | 60 |
| Paper loading method | Easy |
| Effective printing width, мм | 72 |
| ESC/POS support | Yes |
| Energy source | 24V/2,5A |
| Cash drawer control | Yes, 24V |
| Color | Black |
| Width, mm | 175 |
| Length, mm | 150 |
| Height, mm | 245 |
| Operation conditions: - T, °С | +0 … +45 |
| - humidity, %, at +30 °С | 10 to 80 (non-condencing) |
| Storage conditions: - T, °С | - 10 ...+50 |
| - humidity, %, при +30 °С | 10 to 90 (non-condencing) |
| Leaflet | Загрузить |
What is Docking Station?
The rapid development of computer and Internet technologies leads to replacement of traditional POS terminals (with PC composition), by a modern solutions using the tablets with application software based on operating systems iOS, Android and Windows 10.
But, tablets do not contain the ports for their communications with peripheral devices, which are part of the traditional cashier's workplace. That is why it is necessary to use a special stand. We call it the Docking Station.
Docking stations provide a convenient mounting of tablets from 7 to 10 inches, print checks on an external or built-in printer, connection of POS-periphery: the scales, barcode scanners, cash drawer, magnetic card reader, keyboard, etc.
