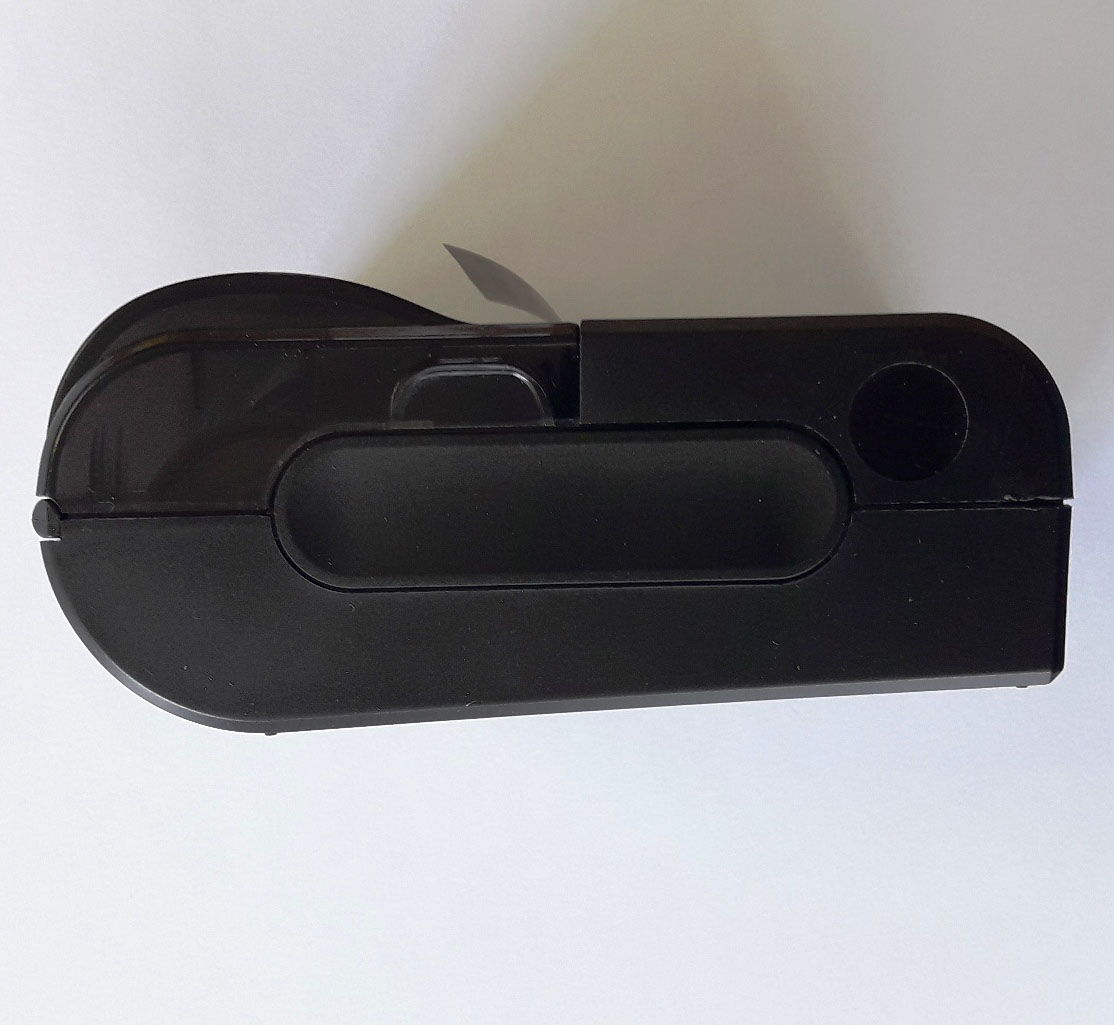

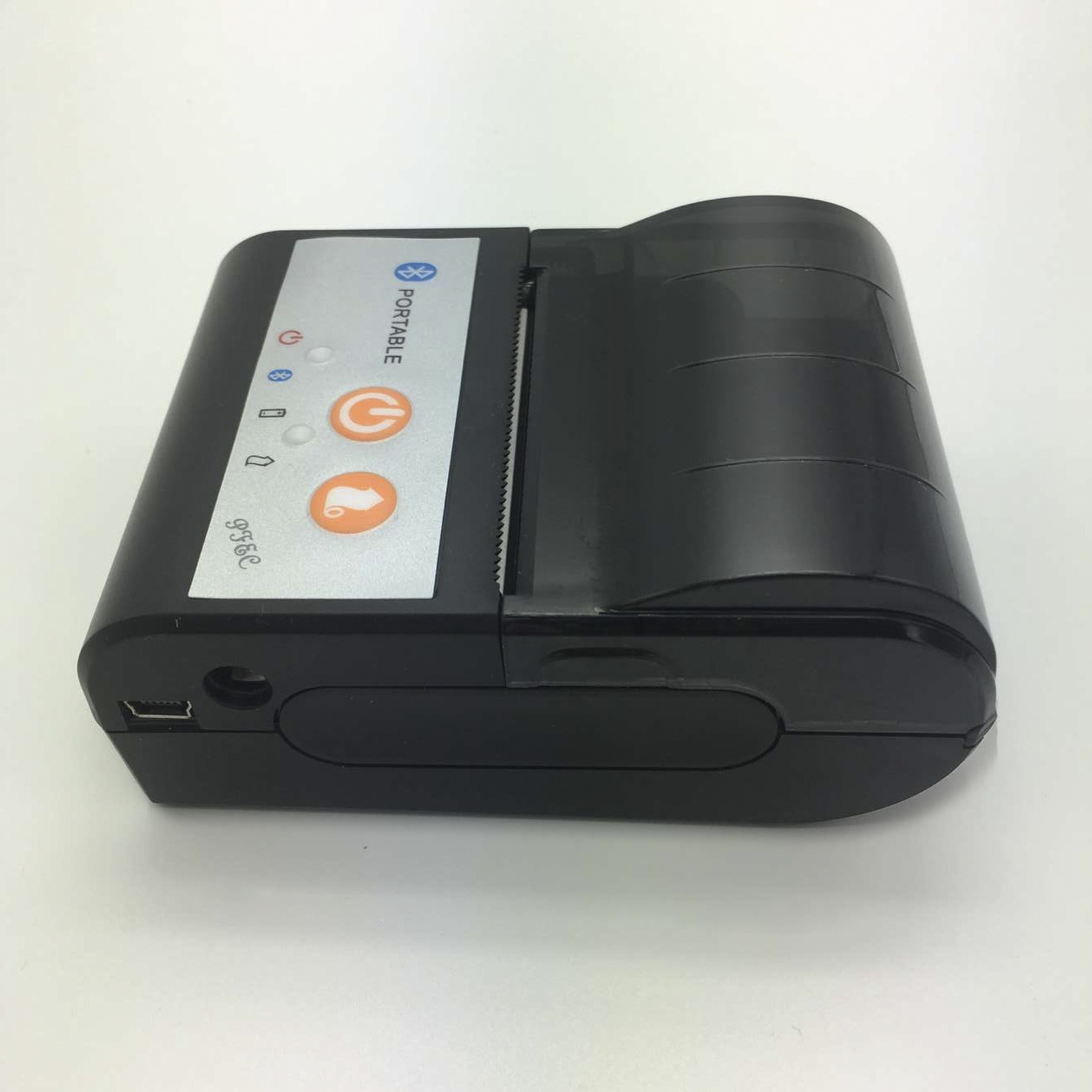

Thermal Printer TMP58A
TMP58A connects other devices with USB port. It offers drivers for WINDOWS and LINUX operating systems.
| Specifications | |
| Max. printing speed, mm/sec | 90 mm/s (max) |
| Cutter | no |
| Printing method | Thermal |
| Print resolution, dots/mm | 203DPI,8 dots/mm |
| Print resolution dots per line | 384 |
| Thermal printing head reliability, km | 50 |
| Paper for printing | 0.065~0.1mm |
| Paper width | 57.5±0.5mm |
| Paper roll max diameter, mm | 38mm(Max.) |
| Paper loading method | Easy loading |
| Effective printing width, мм | 48mm |
| ESC/POS support | ESC/POS compatible commands |
| Character size | ASCII 9×17,12×24 |
| Character Set | Supports different density dots and images printings Supports grating bitmap printing Supports download bitmap printing, every bitmap size should less than 64K, and the total capacity of download bitmap is 64K. |
| Barcodes printing | UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93 QR Code |
| Memory | Receive buffer area 4K Bytes FLASH 4M bytes, NV bitmap 64K bytes |
| Interfaces | USB |
| Wireless interfaces | Bluetooth |
| Sensors | Paper out |
| Battery type | li-ion батарея |
| Battery сapasity | 1600 mAh |
| Energy source | 12V/1A |
| Color | Black |
| Width, mm | 97 |
| Length, mm | 75 |
| Height, mm | 48 |
| Weight, kg | 0,200 |
| Operation conditions: - T, °С | -10℃ ~ 50 |
| - humidity, %, at +30 °С | 25% ~ 80% |
| Storage conditions: - T, °С | ~40℃ ~ 70℃ |
| - humidity, %, при +30 °С | 93% |
| User manual | Загрузить |
TMP58A is a thermal POS printer. It has good printing quality and high stability, which is widely used in POS system, food service industry and many other fields.
TMP58A connects other devices with USB port. It offers drivers for WINDOWS and LINUX operating systems.
The supported operating systems are as below:
WINDOWS XP
WINDOWS 7 32/64
WINDOWS 8
UBUNTU 12.04 32/64
UBUNTU 14.04 32/64
main features
1) Battery power,easy move.
2) Low noise and high printing speed.
3) Easy paper loading.
4) Easily use and maintain.
5) Support label paper and continuous paper printing.
6) Compatible with many kinds of paper width.
7) USB interface.
8) Support Bluetooth connect.
