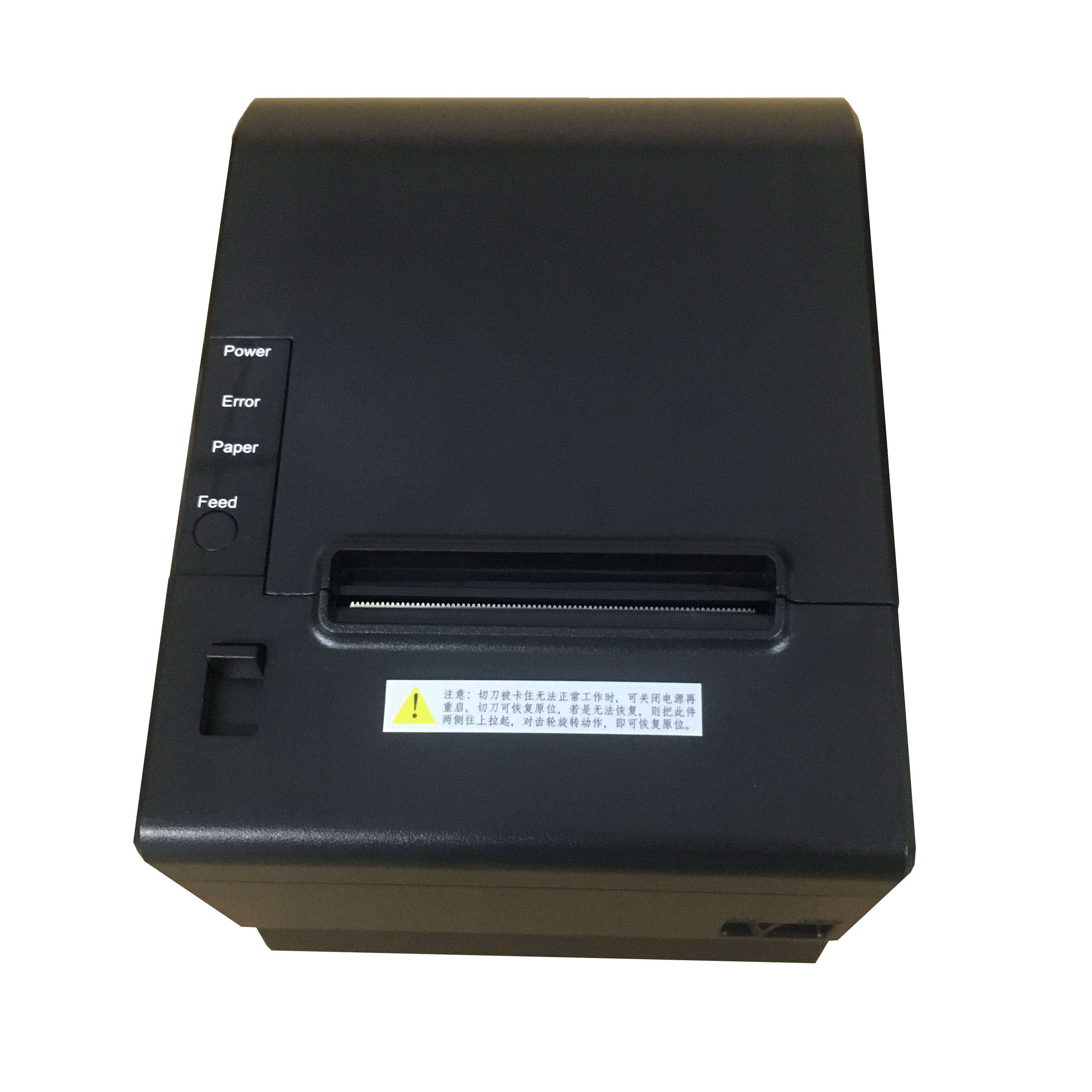

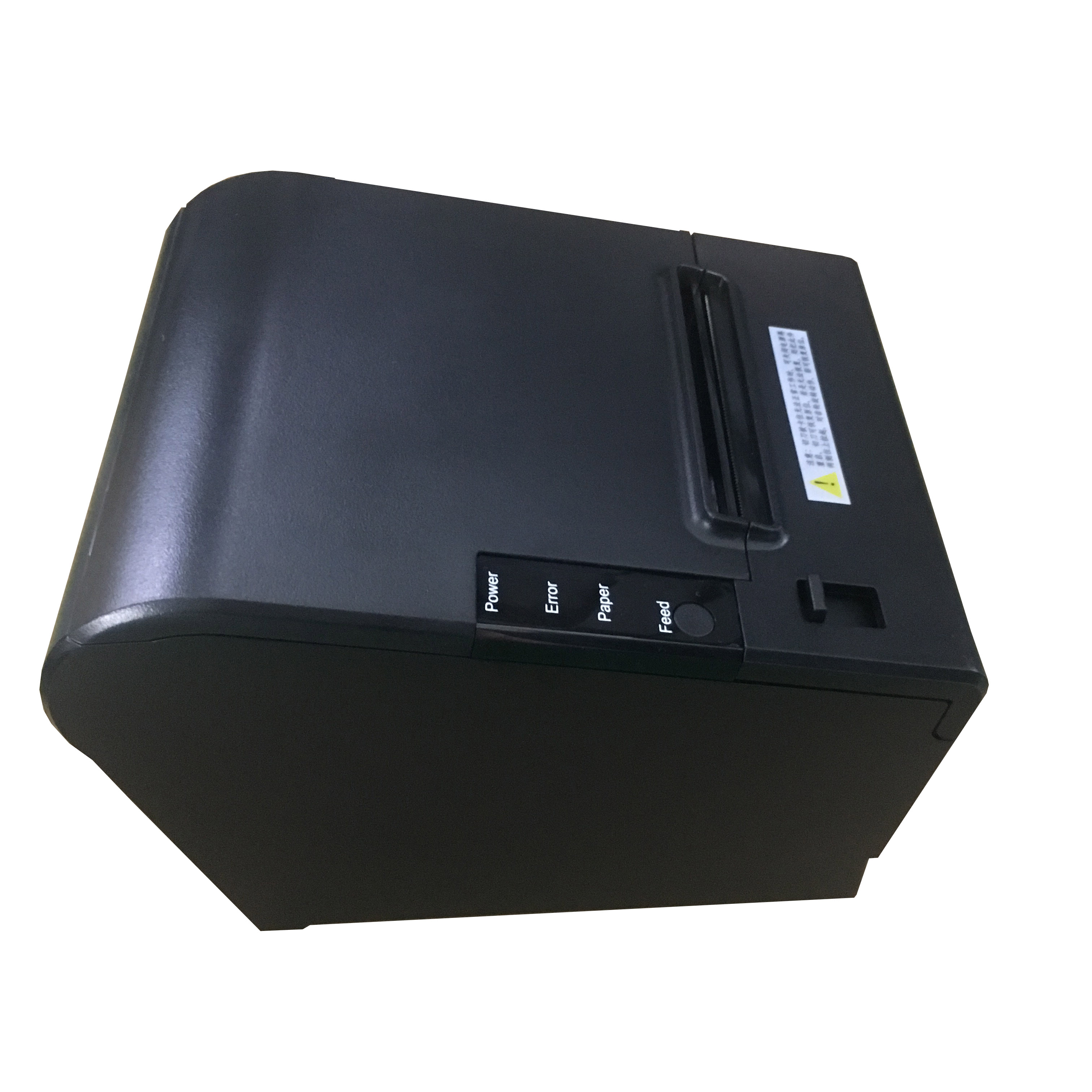

Thermal Receipt Printer PT80USE
Main features
1) With auto-cutter
2) Low noise and high printing speed
3) Easy paper loading
4) Easily use and maintain
5) Support mark paper and continuous paper printing
6) Compatible with many kinds of paper width
7) With cash drawer interface
8) Optional communication interfaces
9) Support Wireless communication function(Optional wifi and bluetooth)
| Specifications | |
| Max. printing speed, mm/sec | 250 |
| Cutter | auto |
| Cutter Reliability | 2 000 000 times |
| Printing method | thermal printing |
| Print resolution, dots/mm | 203DPI,8 dots/mm |
| Print resolution dots per line | 384 |
| Printing mechanism | 3" |
| Thermal printing head reliability, km | 50 |
| Paper for printing | 0,056 - 1 мм |
| Paper roll max diameter, mm | 50 |
| Paper loading method | easy |
| Effective printing width, мм | 72mm(576 dots) |
| ESC/POS support | Yes |
| Character size | ASCI 9X17,12x24 |
| Print Font | UPC-A、UPC-E、EAN-8、EAN13, CODE39、ITF、CODEBAR、 CODE128、CODE93, PDF417、QR Code |
| Barcodes printing | PDF417、QR Code |
| Images printing | Supports different density dots and images printings |
| Memory | RAM 8M bytes, receive buffer area 1M bytes,FLASH 4M bytes, NV bitmap 64K bytes |
| Interfaces | USB, Serial, Ethernet |
| Sensors | Power indicator,Paper out indicator,Error indicator |
| Energy source | 24V, 2A |
| Cash drawer control | Yes |
| Drivers available | The supported operating systems are as below: WINDOWS XP WINDOWS 7 32/64 WINDOWS 8 UBUNTU 12.04 32/64 UBUNTU 14.04 32/64 Android 2.0 above |
| Color | Black |
| Width, mm | 145 |
| Length, mm | 195 |
| Height, mm | 144 |
| Weight, kg | 1,1 |
| User manual | Загрузить |
PT80 is a thermal POS printer with auto-cutter. It has good printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields.
PT80 connects other devices WiFi, Ethernet ,serial or USB port. It offers drivers for Android ,WINDOWS and LINUX operating systems.
The supported operating systems are as below:
WINDOWS XP
WINDOWS 7 32/64
WINDOWS 8
UBUNTU 12.04 32/64
UBUNTU 14.04 32/64
Android 2.0 above
2 Main features
1) With auto-cutter
2) Low noise and high printing speed
3) Easy paper loading
4) Easily use and maintain
5) Support mark paper and continuous paper printing
6) Compatible with many kinds of paper width
7) With cash drawer interface
8) Optional communication interfaces
9) Support Wireless communication function(Optional wifi and bluetooth)
PT80 connects other devices WiFi, Ethernet ,serial or USB port. It offers drivers for Android ,WINDOWS and LINUX operating systems.
The supported operating systems are as below:
WINDOWS XP
WINDOWS 7 32/64
WINDOWS 8
UBUNTU 12.04 32/64
UBUNTU 14.04 32/64
Android 2.0 above
2 Main features
1) With auto-cutter
2) Low noise and high printing speed
3) Easy paper loading
4) Easily use and maintain
5) Support mark paper and continuous paper printing
6) Compatible with many kinds of paper width
7) With cash drawer interface
8) Optional communication interfaces
9) Support Wireless communication function(Optional wifi and bluetooth)
